- Safe And Reliability ：Working platform overload protection, 230kg unlimited ;High precision working platform weighing sensor, continuous monitoring of platform load;Imported hydraulic and electraical compenents,work more reliable.
- Efficient And Comfortable：Electro-hydraulic proportional control technology, smooth and comfortable work;Combination leveling mechanism, work more stable ;Integrated swivel mechansim, swivel more smoothly;AC walking drive control system, strong power, drive more effificient.
- Compact Structure：Zero swing tail, suitable for small space operation;Combined boom structure, strong ability of obstacle crossing.
- Maintenance is Convenient：Self-lubricating bearing;Real-time monitoring and transmission of vehicle information;Screw out battery box;Working condition information recording;History fault record query;

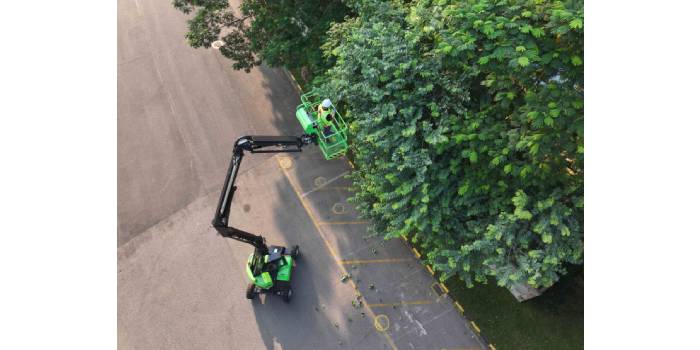

LA16JE
Max.Working Height:
17.8 m
Max.Operating Range:
9.78 m
Platform Load:
260 kg
Product Features
LA16JE
Specifications
| Max.Working Height | 17.8 m |
| Max.Platform Height | 15.8 m |
| Max.Operating Range | 9.78 m |
| Overall Length(Stowed) | 7.2 m |
| Overall Width(Stowed) | 2.3 m |
| Overall Height(Stowed) | 2.35 m |
| Overall Length(Transport) | 7.2 m |
| Overall Width(Transport) | 2.3 m |
| Overall Height(Transport) | 2.35 m |
| Turntable Tailswing(Raised) | 0 m |
| Platform Size(L×W×H) | 1.83×0.76×1.1 m |
| Tyres | 33x12-20(Solid off-road tyre)（Solid off-road tyre） |
| Platform Load(Unrestricted/Restricted) | 260 kg |
| Gradeability | 45 % |
| Max.Working Slope | X-5°/Y-5° |
| Turret Rotation | 360°(Discrete) |
| Drive Steering Type | 4WD×2WS |
| Battery（Lithium） | 51.2V/304Ah |
| Charger | 48V/60A |
| Hydraulic Oil Tank | 65 L |
| Overall Weight | 7400 kg |
| Download Brochure |
※For reference only.
