- Security And Intelligence:Intelligent control system, real-time monitoring of equipment status;Multiple security protection to ensure personnel safety;Intelligent charging system to extend battery life.
- Easy To Control:Drivable at full height to improve working effificiency;The proportion drops and the descent moves smoothly;Forklift pocket, easy to load, unload and transport.
- Maintenance Friendly:Self-lubricating sleeve;Swing-out tray on both sides, easy maintenance;Fault code indication to facilitate troubleshooting.

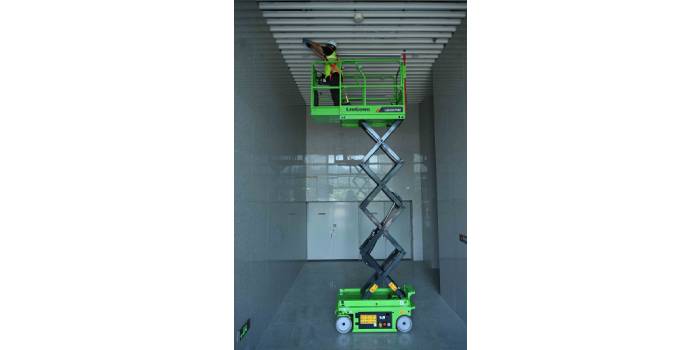

LS0507HM
Max.Working Height:
6.5 m
Rated Load on Working Platform:
240kg
Overall Length/Width:
1.49*0.76 m
Product Features
LS0507HM
Specifications
| Max.Work Height | 6.5 m |
| Max.Platform Height | 4.5 m |
| Min.Platform Height | 0.95 m |
| Platform Size（L×W） | 1.3×0.72 m |
| Overall Length | 1.49 m |
| Overall Width | 0.76 m |
| Overall Height (Rails Down) | 1.67 m |
| Max.Gradeability | 25% |
| Lift Motor | 24V/3.3kW |
| Rated Load on Working Platform | 240 kg |
| Battery | 24V/100Ah |
| Charger | 24V/15A |
| Total Weight | 950 kg |
| Download Brochure |
※For reference only.
