- Heavy lifting performance: With a maximum payload of 70-tons, the TC700C5 is a highly powerful and economical crane. Its high-strength U-shaped boom, advanced telescopic hydraulics and rock-solid stability make it a popular choice for a wide variety of heavy lifting applications. With a maximum boom length of 49m and maximum jib length of 17.5m, it has both the reach and lifting capability to get the job done.
- Fast and easy mobility: With a maximum travel speed of 85km/h, getting on-site is quick and easy.
- Comfort and safety: With a surprisingly spacious cab benefitting from ergonomic controls and excellent all-round visibility, including strategically positioned mirrors and a rear-view camera, the operator can work safely and comfortably.

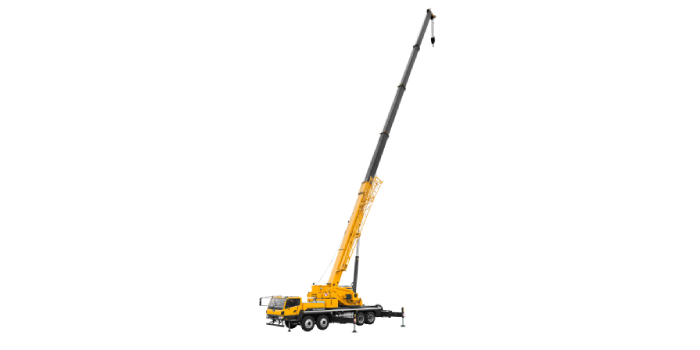

TC700C5
Max Boom Length (Main Boom+Jib):
48+10.5/17.5 m
Max Rated Lifting Capacity:
70 t
Counterweight:
16 T
Product Features

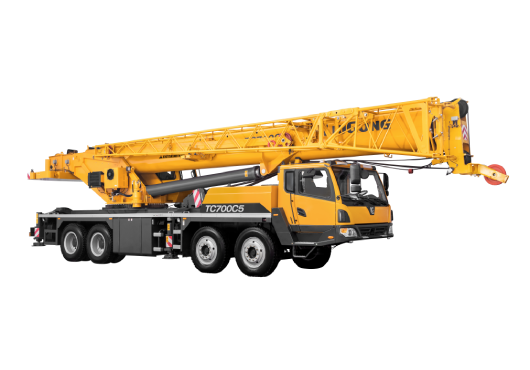

TC700C5
TC700C5
Specifications
| Max. rated lifting capacity | 70 T |
| Dimensions (L x W x H) | 14675x2800x3885 mm |
| The total weight during driving | 46000 kg |
| Engine model | ISLe375 30 / ISL9.5-385E51A |
| Max. rated power of the engine | 275/2100 kW/(r/min) / 282/1900kW/(r/min) |
| Max. rated torque of the engine | 1550/1400 N·m/(r/min) / 1600/1300 N·m/(r/min) |
| Max. travel speed | 85 km/h |
| Min. turning diameter | 24 m |
| Approach and departure angle | 18°/14° |
| Outrigger transversal span | 7.8 m |
| Outrigger longitudinal span | 6.275 m |
| Boom luffing time (lifting/descending) | 65 s |
| Boom extension time( extension/retraction) | 105s |
| Max. slewing speed | 1.7 r/min |
| Max. lifting speed: Main winch (No load) | 130 m/min |
| Max. lifting speed: Auxiliary winch (No load) | 130 m/min |
| Download Brochure |
※For reference only.
