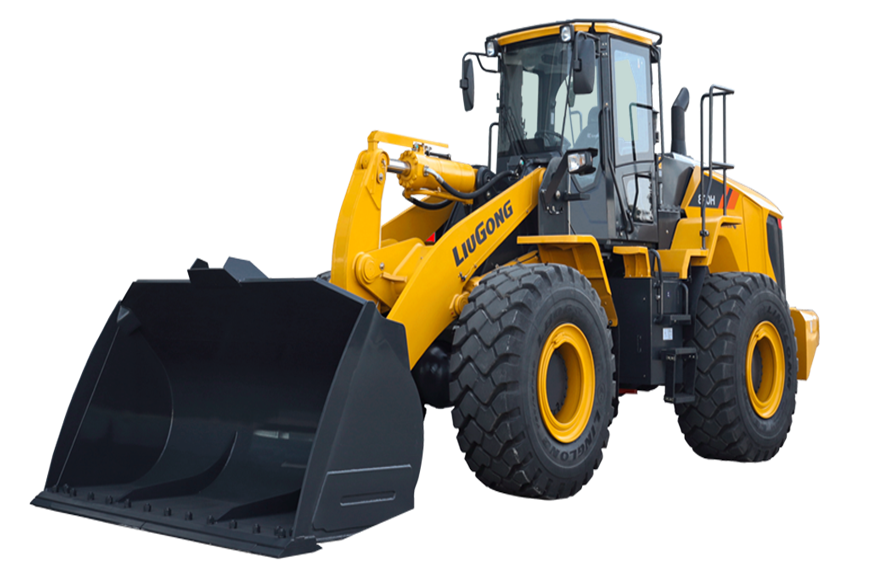

870H
Operating Weight
23,000-23,700 kg
Rated Load Capacity
7,000 kg
Rated Power
190 kW
- Customized engine, well-matched power-train for strong power output, low fuel consumption;
- Advanced and highly efficient hydraulics deliver fluid on demand without overflow loss to save energy, while offer smooth shift;
- Heavy-duty wet axle, robust frame structure and dependable components provide high reliability;
- Pressurized FOPS/ROPS cab, ergonomically design, 309°panoramic visibility and three-stage vibration reduction give the operator a safe and comfortable work environment;
- Ground-level servicing, cost-saving routine maintenance.
Similar products
835T
Operating Weights:10,100-10,800 kg
Rated Load Capacity:3,000/3,300/3,500 kg
Rated Power:92/110/113 kW
848T
Operating Weights:15,800-16,500 kg
Payload:4,800 kg
Rated Power:129/133 kW
856H
Operating weights:17,150-20,214 kg
Payload:5,000/5,500 kg
Rated power:162/168 kW
870H (Tier 3 / Stage III)
| Operating Weight | 23,700 kg |
| Rated Power | 190 kW (255 hp / 258 ps) @ 2,200 rpm |
| Raise | 5.2 s |
| Tipping Load-Full Turn | 16,800 kg |
| Dump Clearance, Full Height Discharge | 3,155 mm |
| Model | Cummins QSL9.3 |
| Aspiration | Turbocharged & Air-to-air intercooled |
| Width over Tires | 2,980 mm |
| Turning Radius, Outside of Tire | 6,650 mm |
| GP Bucket | 3.5-5.2 m³ |
| Rock Bucket | 3.3 m³, 4.0 m³ |
| Standard Bucket Capacity | 5.0 m³ |
| Total Hydraulic Cycle Time | 9.5 s |
| Maximum Travel Speed, fwd | 36 km/h |
| Bucket Breakout Force | 181 kN |
| Dump Reach at Full Height Discharge | 1,270 mm |
| Emission Rating | Tier 3 / Stage III |
| Length with Bucket Down | 8,849 mm |
| Cab Height | 3,550 mm |
| Bucket Capacities | 3.0-7.0 m³ |
| Light Material Bucket | 5.8 m³, 7.2 m³, 9.0 m³ |
※For reference only.
