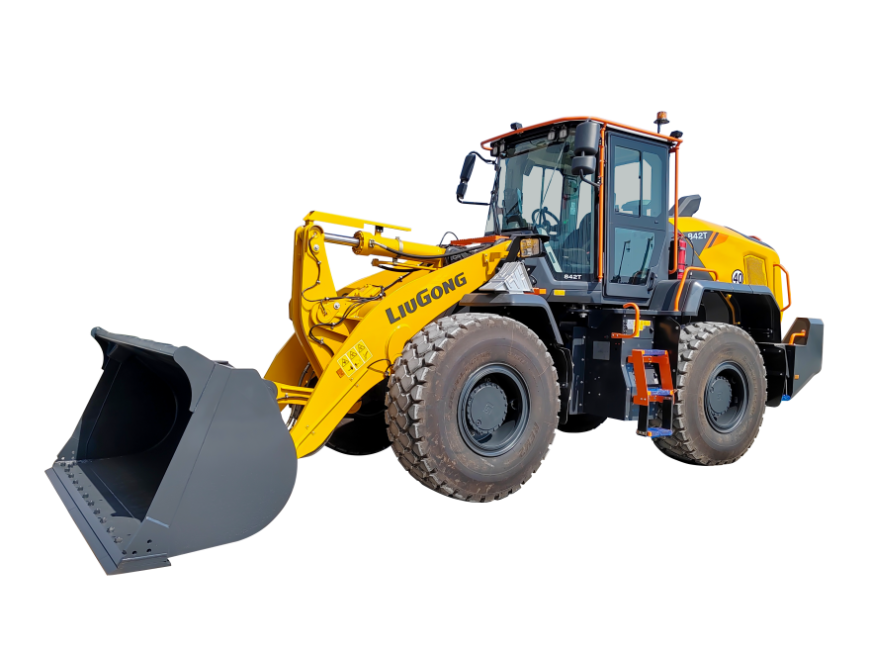

842T
Operating Weights
14,000-15,150 kg
Rated Load Capacity
4,000/4,200 kg
Rated Power
120/125/129 kW
- Programmable hydraulic control suitable for different applications and operating styles.
- Parallel lifting function can be activated for forks or other attachments.
- Customized engine is perfectly matched power-train for high efficiency and low fuel consumption.
- The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
- Robust design of frame structure, wide spread hitch and wear-resistance bucket for maximum durability.
- Pressurized cab, 309° panoramic visibility, ergonomically design and three-stage vibration reduction give the operator a safe and comfortable work environment.
- Wide open access to all servicing points for easy serviceability.
Similar products

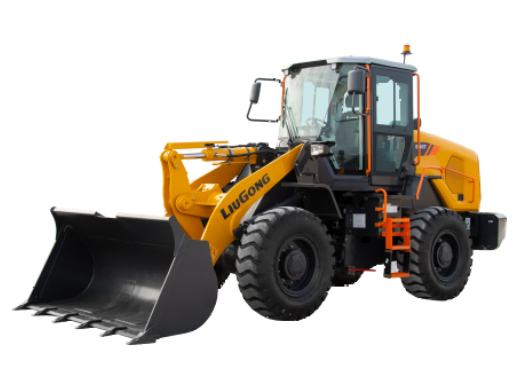

835T
Operating Weights:10,100-10,800 kg
Rated Load Capacity:3,000/3,300/3,500 kg
Rated Power:92/110/113 kW

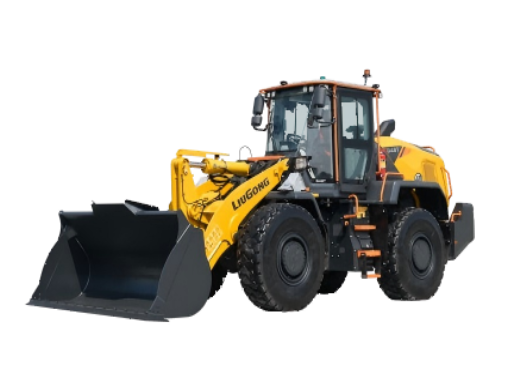

848T
Operating Weights:15,800-16,500 kg
Payload:4,800 kg
Rated Power:129/133 kW
856H
Operating weights:17,150-20,214 kg
Payload:5,000/5,500 kg
Rated power:162/168 kW
842T (EU Stage V)
| Operating Weight | 15,150 kg |
| Gross power | 126 kW (169 hp / 171 ps) @ 1,800 rpm |
| Total Hydraulic Cycle Time | 10 s |
| Maximum Travel Speed, fwd | 41.6 km/h |
| Bucket Breakout Force | 128 kN |
| Dump Reach at Full Height Discharge | 1,096 mm |
| Emission Rating | EU Stage V |
| Length with Bucket Down | 7,924 mm |
| Cab Height | 3,382 mm |
| Bucket Capacities | 2.1-4.0 m³ |
| Standard Bucket Capacity | 2.3 m³ |
| Net power | 116 kW (156 hp / 158 ps) @ 1,800 rpm |
| Raise | 5.1 s |
| Tipping Load - Full Turn | 8,469 kg |
| Dump Clearance at Full Height Discharge | 2,826 mm |
| Model | Cummins B6.7 |
| Aspiration | Turbocharged & Air-to-air intercooled |
| Width over Tires | 2,470 mm |
| Turning Radius, Outside of Tire | 5,395 mm |
| GP Bucket | 2.3-3.0 m³ |
※For reference only.
842T (Tier 3/Stage III)
| Operating Weight | 14,000 kg |
| Rated Power | 125 kW ( 168 hp / 170 ps ) @ 2,200 rpm |
| Riase | 4.9 s |
| Tipping Load-Full Turn | 8,800 kg |
| Dump Clearance at Full Height Discharge | 2,925 mm |
| Model | Cummins QSB5.9 |
| Aspiration | Turbocharged & Air-to-air intercooled |
| Width over Tires | 2,470 mm |
| Turning Radius, Outside of Tire | 5,478 mm |
| GP Bucket | 2.3-4.2 m³ |
| Standard Bucket Capacity | 2.3 m³ |
| Total Hydraulic Cycle Time | 9.1 s |
| Maximum Travel Speed, fwd | 39 km/h |
| Bucket Breakout Force | 122 kN |
| Dump Reach at Full Height Discharge | 970 mm |
| Emission Rating | Tier 3/tage III |
| Length with Bucket Down | 7,569 mm |
| Cab Height | 3,340 mm |
| Bucket Capacities | 2.3-4.2 m³ |
※For reference only.
842T (Tier 2/Stage II)
| Operating Weight | 14,000 kg |
| Rated power | 129 kW ( 173 hp / 175 ps ) @ 2,200 rpm |
| Riase | 4.9 s |
| Tipping load-full turn | 8,800 kg |
| Dump Clearance at Full Height Discharge | 2,855 mm |
| Model | Weichai WP6G175E201 |
| Aspiration | Turbocharged & Air-to-air intercooled |
| Width over Tires | 2,466 mm |
| Turning Radius, Outside of Tire | 5,478 mm |
| GP Bucket | 2.3-4.2 m³ |
| Standard Bucket Capacity | 2.3 m³ |
| Total Hydraulic cycle time | 9.1 s |
| Maximum Travel Speed, fwd | 40.5 km/h |
| Bucket breakout force | 111 kN |
| Dump Reach at Full Height Discharge | 1,041 mm |
| Emission Rating | Tier 2/Stage II |
| Length with Bucket Down | 7,800 mm |
| Cab Height | 3,340 mm |
| Bucket Capacities | 2.3-4.2 m³ |
※For reference only.
